Invacare Carroll CS9 FX600 Hospital Bed Set

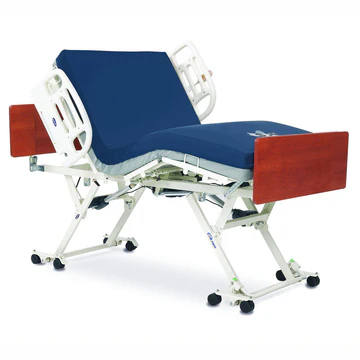

CS9 Full Electric Bed

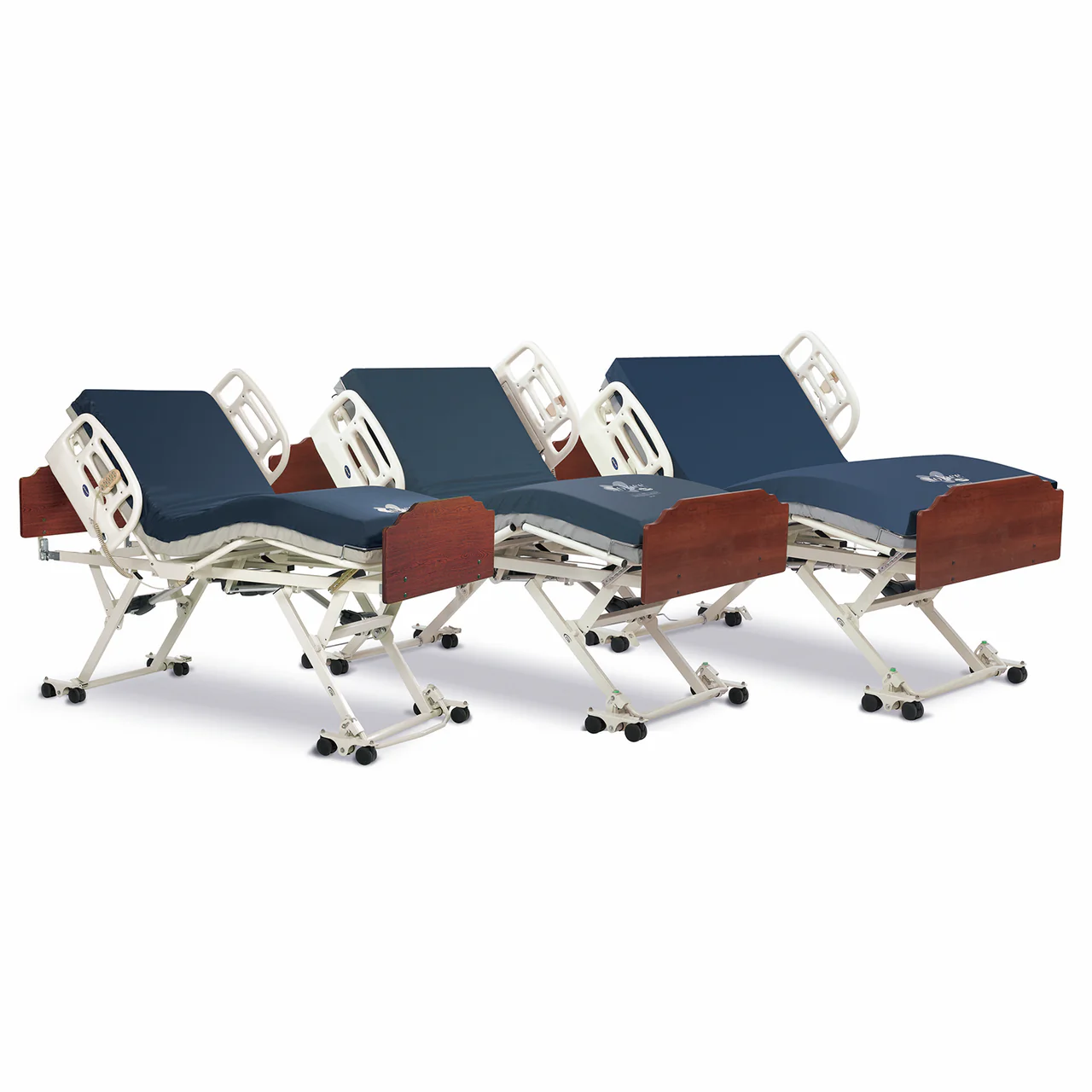

• Integrated Adjustable Width Simple 'In-a-Snap' adjustments makes widening the bed easy and quick. Simply loosen the adjustment knob, press the snap button, and slide the adjustable wing to the desired position.
• Adjustable Width Headboard Featuring the elegant design found on all Invacare end panels, the new adjustable-width headboard slides into the correct position by removing the soft-touch knobs. The headboard wing easily lines up with the correct holes, and quickly secures with the soft-touch knobs.
• Auto Contour simultaneously raises both the head and the knees, residents stay comfortably in place while being better positioned for reading, watching TV or talking to family members. The simultaneous movement also helps prevent painful skin shearing that might otherwise occur during repositioning.
• Rapid tool free assembly minimizes delivery set-up time and makes maintenance easier

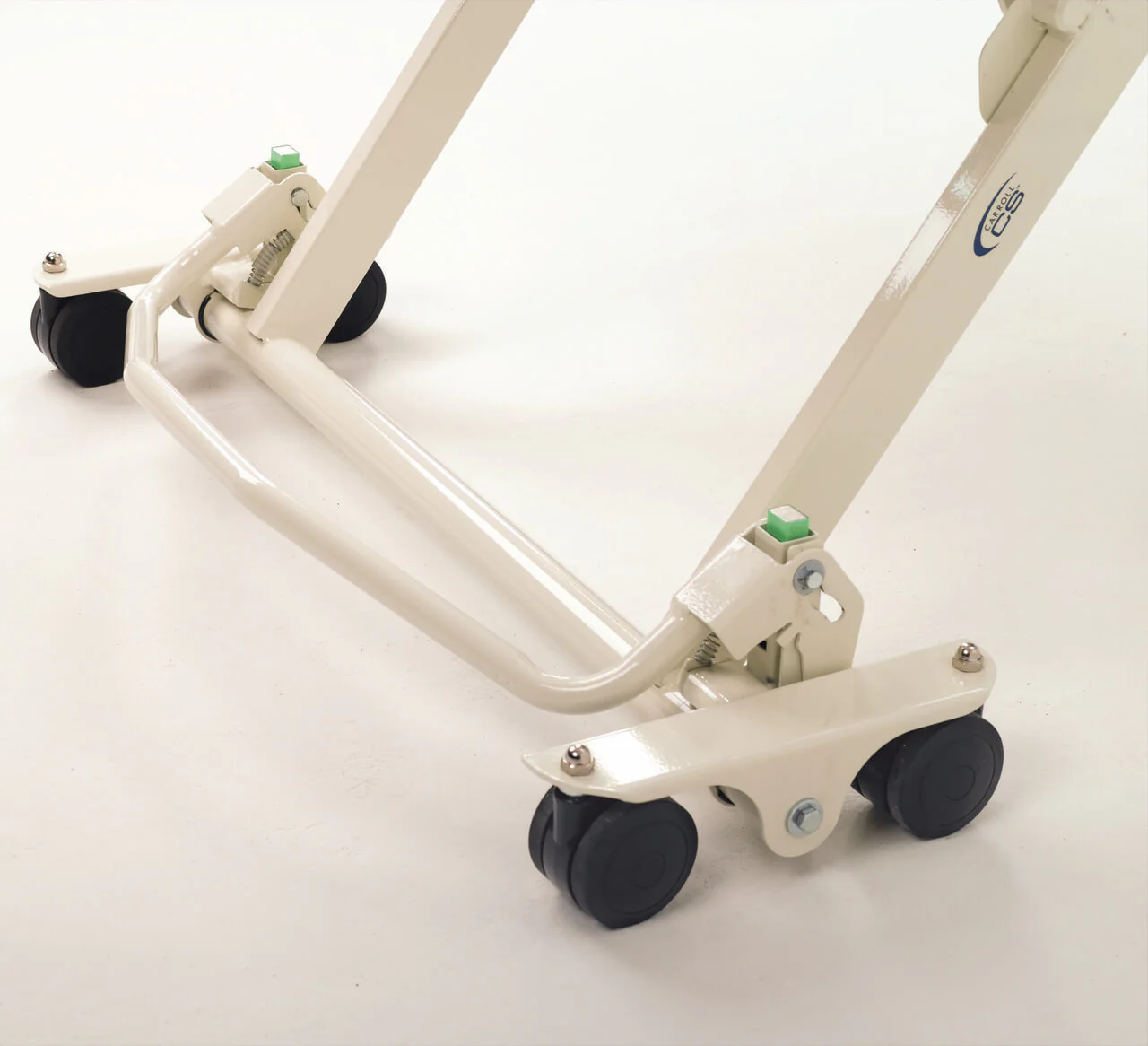

• Floor lock system secures the bed to the floor at all height ranges but allows for Mobilty-On-Demand. Caregivers do not have to wait for the bed to be raised to its full height before transporting or maneuvering. An easy to read indicator alerts staff if the bed is off its castors and not locked properly.

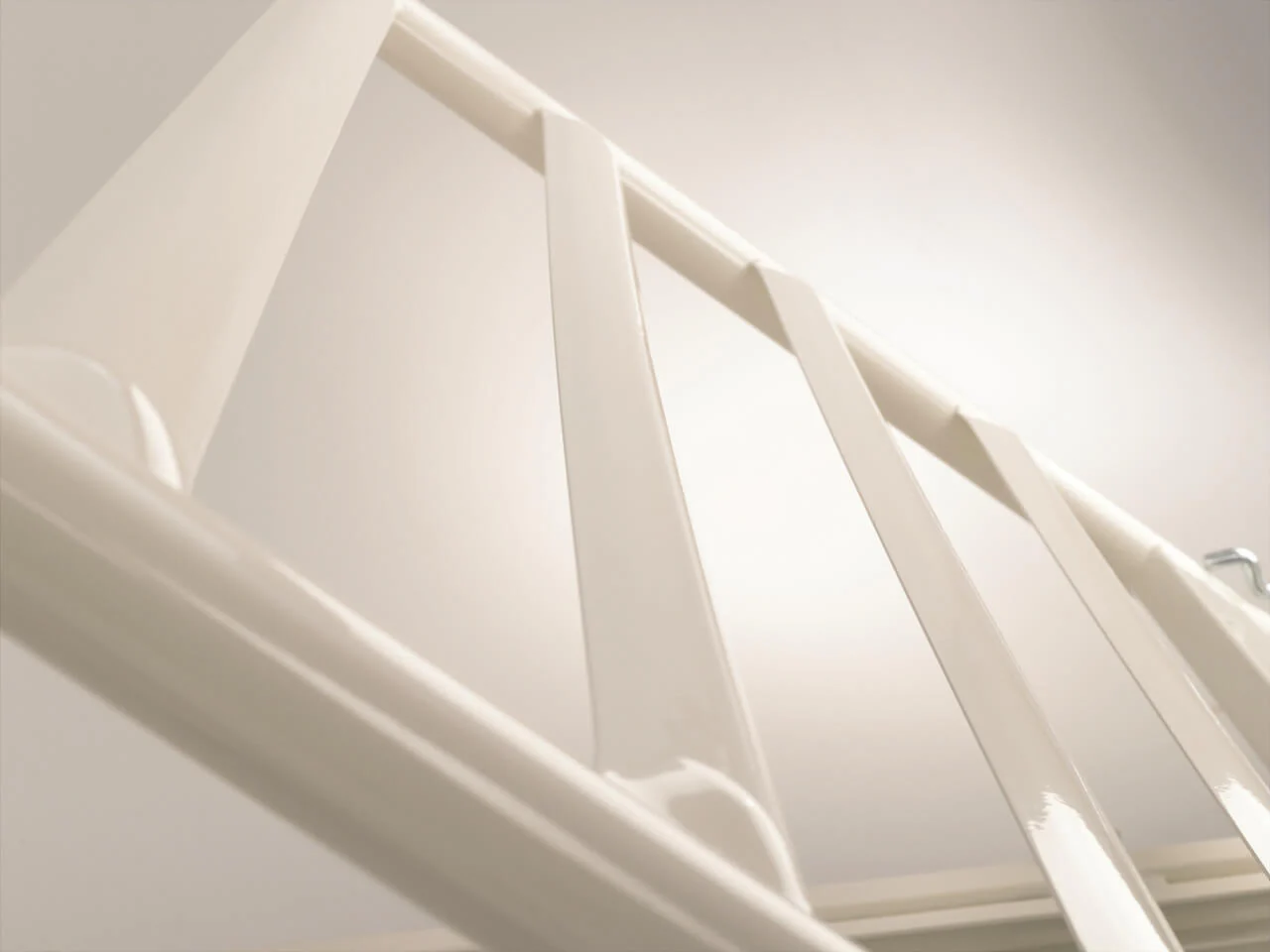

• Exclusive arched slat deck design allows for improved infection control and reduces wear and tear on mattresses
• Carroll CS beds feature a rugged Hand Control, with bright, universal symbols, allowing residents and staff to easily operate the comfort controls of the bed.
• Wall Bumper is included to ensure the bed is the proper distance from the wall for safe operation.
• Optional Trendelenburg (Custom Option will add 10 weeks to delivery) available with the Advanced Control Panel. The Panel can only be used by caregiver for safe Trendelenburg positioning.
• Optional Battery Backup (Custom Option will add approximately 4 weeks to delivery time) is available on the CS Series Bed. Integrated into the frame the battery backup will give you hours of power for when power is lost to the bed.

Advantage Therapeutic Mattress (Moderate to High Risk)

• Comfortable high-density all-foam mattress provides effective pressure injury prevention and offers a therapeutic alternative to traditional homecare innerspring mattresses
• Nylon cover helps reduce shear and friction. Antimicrobial cover and core
• Durable Two-sided mattress can be flipped and rotated head to foot
• Easy to store, carry, deliver and set up; just takes one person to open the box set up the mattress
• 300 Lbs Weight Capacity
• Warranty: 3 Years

Advantage Contour 2.2 Foam Mattress: (High Prevention to Stage 2)

• The economical Advantage Contour 2.2 provides effective pressure and shear reduction.
• Two anatomic zones in top layer to provide contoured comfort and support
• Super-soft heel section to prevent skin breakdown in one of the highest pressure points
• Premium All-Way Stretch Cover - Provides friction prevention as well as reduces the user from sliding down the mattress
• Nylex® top cover helps reduce shear and friction. Fluid proof and antimicrobial
• 350 Lbs Weight Capacity
• Warranty: 5 years

Advantage Contour 3.3 Foam Mattress: (High Prevention to Stage 2)

• Three Anatomic Zones in Top Layer - Pinpoint pressure point prevention focusing directly on the most susceptible areas of the body.
• Three Layer Foam Design - Provides lumbar support for the back, cradling in the buttocks and sloped heels
• Premium All-Way Stretch Cover - Provides friction prevention as well as reduces the user from sliding down the mattress
• Nylex® top cover helps reduce shear and friction. Fluid proof and antimicrobial
• 450 Lbs. Weight Capacity
• Warranty: 10 Years

Advantage Graphite Mattress: (High Prevention to Stage 2)

• Cooling Technology Thermal conductivity using cooling graphite technology
• Pressure redistribution with multi-layer foam topped with graphite-infused visco memory foam
• Drying air channels improves air circulation through precision-cut air channels keeping the mattress dry
• All way stretch cover reduces shear and friction with stretch nylon top cover
• Fluid resistant cover keeps mattress free from accidents and spills
• Made in the U.S.A
• 400 Lbs. Weight Capacity
• Warranty: 10 Years

MicroAIR MA65 Mattress (High Risk to Stage II)

• Alternating Pressure: Reduces interface pressure to aid in the prevention and treatment of pressure ulcers.
• On Demand Low Air Loss: Air is sent inside the mattress to keep the mattress environment cool ad assist with moisture management and maintain a dryer environment. The On Demand Low Air Loss pushes air in between the bladders.
• Alternating Pressure Therapy Time Cycles: Cycles of 5, 10, 15, 20 minutes
• 20 Air Cells: Made from 70 Denier urethane coated nylon. Easy connect and disconnect with quick connect elbows.
• Safety Foam Mat: Added safety feature to prevent patient from bottoming out.
• Constant Pressure Monitoring: Sensor techonology constantly adjusts the pressure to regulate the air inside the mattress and maintain the pressure at or below 32mm/Hg to avoid capillary occlusion.
• Manual and Wireless Fowler: 25% more air is added into the mattress, preventing the patient from bottoming out.
  • Wireless Fowler:

• • • New wireless fowler technology, real time pressure monitoring and energy conserving power units combine to make microAIR surfaces the most efficient dynamic support surfaces in the market. Within the power units is a pressure transducer that maintains surface pressure not to exceed 32mm/Hg. The solenoid valve within the compressor opens and closes the air valve automatically to maintain the pressure relief range prescribed. The compressor turns off to save energy when the patient is in the range.
    • Wireless Fowler Technology is an innovation exclusive that assures patient comfort. From time to time patients need to sit up in bed, which creates the problem of additional pressure in the coccyx area and possible disruption of treatment.
    • Working in sync with the power unit, the transmitter installed in the head section of the mattress signals the power unit when the head portion begins to raise. The power unit immediately begins adding 25% more air to the mattress to prevent patient contact with a hard surface.

• Audio and Visual Alarms: Warns patient and caregiver of low pressure and power outage.
• System Lock Out Button: Prevents tampering or accidental adjustments
• Power Outage Safety: Mattress remains inflated as long as the air hose remains connected to the compressor. System returns to pre-power outage settings.
• Mattress Cover: Anti-microbial, fluid-proof, vapor permeable, guards against friction and shear. 70 Denier quilted nylon with 1000 denier nylon bottom.
• Compressor: 50 LPM compressor
• Warranty: 1 Year Mattress / 2 Years Blower and Cover

Assist Bars (Pair)

• Provides coverage at the top of the bed then swings counter clockwise to the headboard of the bed and out of the way.
• Designed for assisting residents in and out of bed
• Easy pull knob release, quickly folds out of the way with two way positioning

Assist Rails (Pair)

• Ideal for moving and getting out of bed as well as mid bed coverage for at fall risk users.
• Offers three positions that provide safety while the resident is in the bed
• Promotes healthy transfers in its up position, and swivels out of the way for easy access and caregiver-assisted transfers

ThinkSoft Half Side Rails (Pair)

• Device rotates with head deck, making it easy for residents to reposition themselves
• Reliable, pinch-free latching mechanism for simplicity of use. These rails release down.
• Open design so residents do not feel trapped

Full Side Rails (Pair)

• Traditional rail that extends the length of the bed.
• Quick release for easy transfers and resident care.
• These rails release down.

• Available in Amherst Head and Footboards
• Traditional styling that will fit any decor.
• Available in Amber Cherry, Solar Oak and Biltmore Cherry.
• Footboard Control Panel only available in Solar Oak and Biltmore Cherry.

• Available in Drake Head and Footboards
• Traditional styling that will fit any decor.
• Available in Solar Oak and Biltmore Cherry.
